我司推出可见光波段的超窄线宽线激光模组系列，覆盖了从405nm到780nm的广泛波长范围，并提供了多样化的输出功率选择，为满足不同应用场景的需求，有一字线模组和点激光模组。例如，APCD-635-06-C2-TM型号提供1mW的稳定输出，而ADL-80V03TL则可实现高达0.5W的输出功率（808nm）。这些一字线激光头模组采用紧凑且耐用的TO封装设计，并集成了先进的自动功率控制（APC）技术，确保一字线激光头在各种工作条件下的稳定性和可靠性。

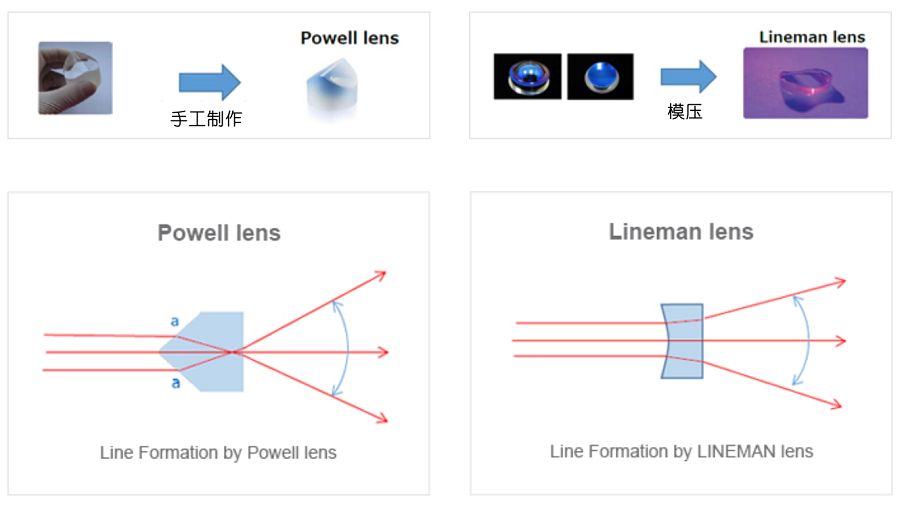

超窄线宽线激光模组（LINEMAN）是一种创新的一字线模组模块，集成了半导体激光器和高精度模压透镜。专利成型技术使LINEMAN能够使超窄线宽线激光模组输出可重复和均匀的线条，并最大限度地减少线条变化，这与传统的Powell镜片不同。以超紧凑的封装提供一字线模组，外壳直径小至6.5毫米，4um线宽。

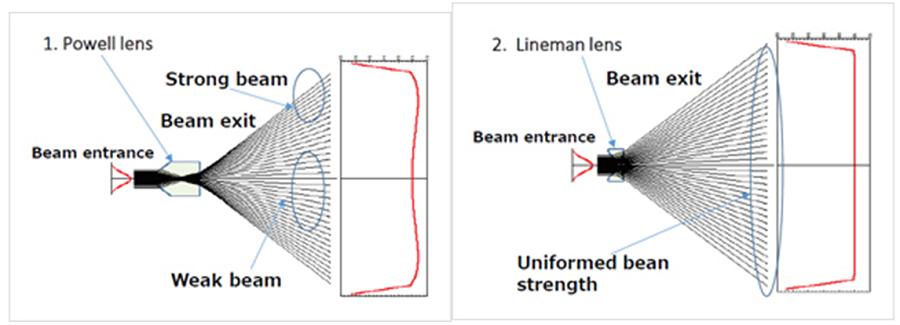

重复性好。Powell透镜在激光进入的地方有一个陡峭的凸起，周围的弯曲区域会影响线条的均匀性。该周围区域通常由人手抛光，这可能会导致线条变化和不一致。另一方面，LINEMAN镜头采用我们的成型技术生产，具有非常平缓的曲线，使线条均匀且可重复，这与手工制作的Powell镜头不同。
均匀性好。Powell透镜通常用于许多线发生器模块。Powell透镜的形状通常使用多项式的二次近似值来确定。Powell透镜中使用的技术倾向于在两端产生强烈的光束分布，如果试图通过抑制端部强度来平衡光束，则会在中心产生凹陷）。正如人们所看到的，由于近似，理论上不可能使用Powell透镜创建完全均匀的线。除了这一理论，还有其他负面因素需要考虑，如激光束角度和透镜形状的不一致性。
总之，这会导致线性激光模组生产更加不一致，生产良率降低。另一方面，LINEMAN镜头是在没有数字积分的情况下生产的。理论上，LINEMAN透镜技术可以产生100%的平顶光束强度（见图2），消除不一致，提高生产良率。
小封装：使用独特的组装技术提供业界最小的φ6.5mm封装一字线激光头在线生成模块，尽管大多数制造商通常提供φ18mm封装。这种独特的封装工艺不仅提供了最小的封装，还支持了许多生产线模块中常见的散热问题。高功率激光器提供φ8mm封装，我们将继续寻求新技术以跟上小型化的趋势。
紧凑型封装线性激光模组可以与APC电路和TTL信号输入电路集成。

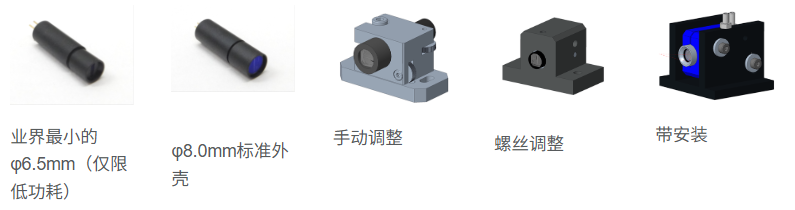

外壳选项（提供各种可调节外壳）
以ALM-405150-AAF001为例，这个型号是405nm波长，直径8mm的紫光4um线宽超细线激光模组。
超细线激光模组最大额定参数
参数
符号
额定值
单位
电源电压
Vcc
2
V
激光模块光学输出功率
Po
50
mW
工作温度
Topr
-10-50
℃
存储温度
Tstg
-20-60
℃
4um线宽激光模组光学参数
参数
最小值
典型值
最大值
单位
波长
400
405
410
nm
扇形角
10
°
焦距
12
Mm
线长
3.1
输出功率
45
mW
操作电压
8
8
8.5
V
操作电流
150
189
mA

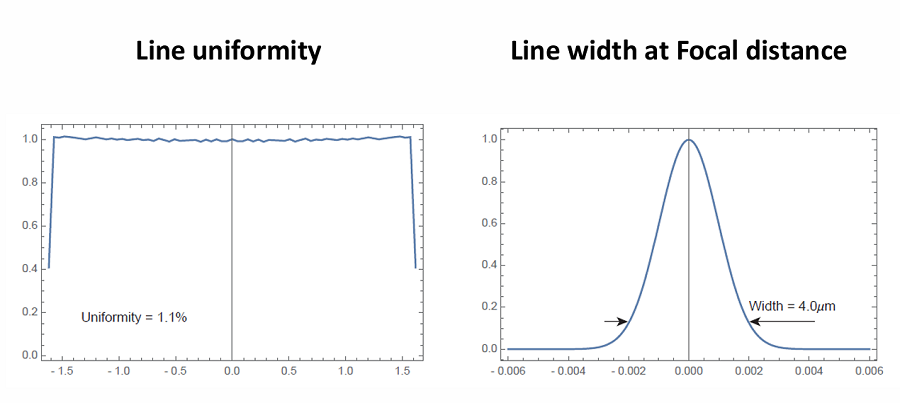

线宽@12mm(1/e2)
4
μm
一致性
5%
准直
0.1%

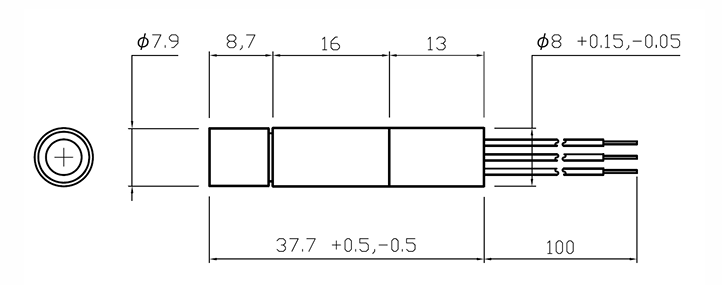

超细线激光模组尺寸（mm）
超细线激光模组选型表格
波长 (nm)
PN
输出功率(mW)
工作电流(mA)
尺寸(mm)
405
AML-L115-405001-01
1
200
Dia 11.7x30
405
AML-D120-405001-01
1
200
Dia 12x38
405
AML-D105-405001-01
1
200
Dia 10.5x15.3
405
AML-D080-405001-01
1
200
Dia 8.0x15.3
405
AML-D120-405003-01
3
200
Dia 12x38
405
AML-D105-405003-01
3
200
Dia 10.5x15.3
405
AML-D080-405003-01
3
200
Dia 8.0x15.3
405
AML-L115-405005-01
5
200
Dia 11.7x30
405
AML-D200-405005-01
5
200
Dia 12x38
405
AML-D120-405005-01
5
200
Dia 12x38
405
AML-D105-405005-01
5
200
Dia 10.5x15.3
405
AML-D080-405005-02
5
200
Dia 8.0x15.3
405
AML-D200-405010-01
10
200
Dia 12x38
450
AML-L115-450001-01
1
200
Dia 11.7x30
450
AML-D120-450001-01
1
200
Dia 12x38
450
AML-D105-450001-01
1
200
Dia 10.5x15.3
450
AML-D080-450001-01
1
200
Dia 8.0x15.3
450
AML-D120-450003-01
3
200
Dia 12x38
450
AML-D105-450003-01
3
200
Dia 10.5x15.3
450
AML-D080-450003-01
3
200
Dia 8.0x15.3
450
AML-D080-450005-01
5
200
Dia 8.0x15.3
450
AML-L115-450005-01
5
200
Dia 11.7x30
450
AML-D200-450005-01
5
200
Dia 20x38
450
AML-D120-450005-01
5
200
Dia 12x38
450
AML-D105-450005-01
5
200
Dia 10.5x15.3
450
AML-D080-450005-02
5
200
Dia 8.0x15.3
450
AML-L115-450010-01
10
200
Dia 11.7x30
450
AML-D200-450010-01
10
200
Dia 20x38
450
AML-D120-450010-01
10
220
Dia 12x38
450
AML-D105-450010-01
10
220
Dia 10.5x15.3
450
AML-D080-450010-01
10
220
Dia 8.0x15.3
450
AML-D200-450015-01
15
200
Dia 20x38
450
AML-D200-450020-01
20
250
Dia 20x38
450
AML-D120-450020-01
20
250
Dia 12x38
450
AML-D200-450030-01
30
250
Dia 20x38
450
AML-D200-450040-01
40
250
Dia 20x38
450
AML-D200-450050-01
50
250
Dia 20x38
520
APCD-515-03-C2-TM
1
100
Dia 8x15.5
520
APCD-515-07-C2-TM
1
100
Dia 3.3x8
520
APCL-515-01-C2-TM
1
100
Dia11.5x30
520
APCD-515-01-C2-TM
1
100
Dia 4x8.5
520
APCD-515-03-C3-TM
3
100
Dia 8x15.5
520
APCL-515-01-C3-TM
3
100
Dia11.5x30
520
APCD-515-01-C3-TM
3
100
Dia 4x8.5
520
APCD-515-03-05-TM
5
100
Dia 8x15.5
635
APCD-635-06-C2-TM
1
32
Dia 6.5x8.5
635
APCD-635-01-C2-TM
1
32
Dia 4x8.5
635
APCD-635-D1-C2-XX
1
40
Dia 4.0x9
635
APCL-635-01-C2
1
40
Dia 11.7x30
635
APCD-635-12-C2
1
40
Dia 10.5x15.5
635
APCD-635-07-C2
1
35
Dia 3.3x7
635
APCD-635-06-C2
1
35
Dia 6.5x8.5
635
APCD-635-05-C2
1
40
Dia 10.5x14.5
635
APCD-635-04-C2
1
40
Dia 10.5x14.5
635
APCD-635-03-C2
1
40
Dia 8.0x12.5
635
APCD-635-02-C2
1
40
Dia 6.2x11.5
635
APCD-635-01-C2
1
35
Dia 4.0x8.5
635
APFD-635-02-C3-TA
3
40
Dia10x26.5
635
APCD-635-D1-C3-XX
3
50
Dia 4.0x9
635
APCL-635-CW03
3
50
Dia 9.0x16.5
635
APCL-635-WP03
3
50
Dia 6.0x16.5
635
APCL-635-01-C3
3
50
Dia 11.7x30
635
APCD-635-12-C3
3
50
Dia 10.5x15.5
635
APCD-635-07-C3
3
35
Dia 3.3x7
635
APCD-635-06-C3
3
35
Dia 6.5x8.5
635
APCD-635-05-C3
3
50
Dia 10.5x14.5
635
APCD-635-04-C3
3
50
Dia 10.5x14.5
635
APCD-635-03-C3
3
50
Dia 8.0x12.5
635
APCD-635-02-C3
3
50
Dia 6.2x11.5
635
APCD-635-01-C3
3
35
Dia 4.0x8.5
635
APFD-635-02-05-TA
5
45
Dia10.0x26.5
635
APCD-635-D1-05-XX
5
50
Dia 4.0x9
635
APCL-635-CW05
5
50
Dia 9.0x16.5
635
APCL-635-WP05
5
50
Dia 8.0x16.5
635
APCL-635-01-05
5
50
Dia 11.7x30
635
APCD-635-12-05
5
50
Dia 10.5x15.5
635
APCD-635-05-05
5
50
Dia 10.5x14.5
635
APCD-635-04-05
5
50
Dia 10.5x14.5
635
APCD-635-03-05
5
50
Dia 8.0x12.5
635
APCD-635-02-05
5
50
Dia 6.2x11.5
635
APCD-635-04-10-TM
10
60
Dia 10.5x14.5
635
APCL-635-01-10
10
95
Dia 11.7x30
635
APCD-635-12-10
10
95
Dia 10.5x15.5
635
APCD-635-05-10
10
95
Dia 10.5x14.5
635
APCD-635-04-10
10
95
Dia 10.5x14.5
635
APFD-635-02-15-TA
15
110
Dia10.0x26.5
650
APCD-650-06-C1-TA
0.4
20
Dia 6.5x8.5
650
APCD-650-03-C2-TA
1
35
Dia 8.0x12.5
650
APCD-650-77-C2-TM
1
30
Dia 3.3x5.71
650
APCD-650-07-C2-TM
1
30
Dia 3.3x7
650
APCD-650-06-C2-TM
1
20
Dia6.5x8.5
650
APCD-650-01-C2-TM
1
30
Dia 4x8.5
650
APCD-650-S7-C2
1
35
Dia3.3x5.71
650
APCD-650-D1-C2-XX
1
40
Dia 4.0x9
650
APCL-650-01-C2
1
40
Dia 11.7x30
650
APCD-650-27-C2
1
35
Dia 20x55.1
650
APCD-650-12-C2
1
35
Dia 10.5x15.5
650
APCD-650-07-C2
1
35
Dia 3.3x7
650
APCD-650-06-C2
1
35
Dia 6.5x8.5
650
APCD-650-05-C2
1
35
Dia 10.5x14.5
650
APCD-650-04-C2
1
35
Dia 10.5x14.5
650
APCD-650-03-C2
1
35
Dia 8.0x12.5
650
APCD-650-02-C2
1
35
Dia 6.2x11.5
650
APCD-650-01-C2
1
35
Dia 4.0x8.5
650
APCD-650-61-C3-TA-01
3
30
60
650
APCD-650-07-C3-TM
3
35
Dia 3.3x7
650
APCD-650-D1-C3-XX
3
50
Dia 4.0x9
650
APCL-650-CW03
3
50
Dia 9.0x16.5
650
APCL-650-WP03
3
40
Dia 9.0x16.5
650
APCL-650-01-C3
3
50
Dia 11.7x30
450
AML-D080-450005-01
5
200
Dia 8.0x15.3
450
AML-L115-450005-01
5
200
Dia 11.7x30
450
AML-D200-450005-01
5
200
Dia 20x38
450
AML-D120-450005-01
5
200
Dia 12x38
450
AML-D105-450005-01
5
200
Dia 10.5x15.3
450
AML-D080-450005-02
5
200
Dia 8.0x15.3
450
AML-L115-450010-01
10
200
Dia 11.7x30
450
AML-D200-450010-01
10
200
Dia 20x38
450
AML-D120-450010-01
10
220
Dia 12x38
450
AML-D105-450010-01
10
220
Dia 10.5x15.3
450
AML-D080-450010-01
10
220
Dia 8.0x15.3
450
AML-D200-450015-01
15
200
Dia 20x38
450
AML-D200-450020-01
20
250
Dia 20x38
450
AML-D120-450020-01
20
250
Dia 12x38
450
AML-D200-450030-01
30
250
Dia 20x38
450
AML-D200-450040-01
40
250
Dia 20x38
450
AML-D200-450050-01
50
250
Dia 20x38
520
APCD-515-03-C2-TM
1
100
Dia 8x15.5
520
APCD-515-07-C2-TM
1
100
Dia 3.3x8
520
APCL-515-01-C2-TM
1
100
Dia11.5x30
520
APCD-515-01-C2-TM
1
100
Dia 4x8.5
520
APCD-515-03-C3-TM
3
100
Dia 8x15.5
520
APCL-515-01-C3-TM
3
100
Dia11.5x30
520
APCD-515-01-C3-TM
3
100
Dia 4x8.5
520
APCD-515-03-05-TM
5
100
Dia 8x15.5
635
APCD-635-06-C2-TM
1
32
Dia 6.5x8.5
635
APCD-635-01-C2-TM
1
32
Dia 4x8.5
635
APCD-635-D1-C2-XX
1
40
Dia 4.0x9
635
APCL-635-01-C2
1
40
Dia 11.7x30
635
APCD-635-12-C2
1
40
Dia 10.5x15.5
635
APCD-635-07-C2
1
35
Dia 3.3x7
635
APCD-635-06-C2
1
35
Dia 6.5x8.5
635
APCD-635-05-C2
1
40
Dia 10.5x14.5
635
APCD-635-04-C2
1
40
Dia 10.5x14.5
635
APCD-635-03-C2
1
40
Dia 8.0x12.5
635
APCD-635-02-C2
1
40
Dia 6.2x11.5
635
APCD-635-01-C2
1
35
Dia 4.0x8.5
635
APFD-635-02-C3-TA
3
40
Dia10x26.5
635
APCD-635-D1-C3-XX
3
50
Dia 4.0x9
635
APCL-635-CW03
3
50
Dia 9.0x16.5
635
APCL-635-WP03
3
50
Dia 6.0x16.5
635
APCL-635-01-C3
3
50
Dia 11.7x30
635
APCD-635-12-C3
3
50
Dia 10.5x15.5
635
APCD-635-07-C3
3
35
Dia 3.3x7
635
APCD-635-06-C3
3
35
Dia 6.5x8.5
635
APCD-635-05-C3
3
50
Dia 10.5x14.5
635
APCD-635-04-C3
3
50
Dia 10.5x14.5
635
APCD-635-03-C3
3
50
Dia 8.0x12.5
635
APCD-635-02-C3
3
50
Dia 6.2x11.5
635
APCD-635-01-C3
3
35
Dia 4.0x8.5
635
APFD-635-02-05-TA
5
45
Dia10.0x26.5
635
APCD-635-D1-05-XX
5
50
Dia 4.0x9
635
APCL-635-CW05
5
50
Dia 9.0x16.5
635
APCL-635-WP05
5
50
Dia 8.0x16.5
635
APCL-635-01-05
5
50
Dia 11.7x30
635
APCD-635-12-05
5
50
Dia 10.5x15.5
635
APCD-635-05-05
5
50
Dia 10.5x14.5
635
APCD-635-04-05
5
50
Dia 10.5x14.5
635
APCD-635-03-05
5
50
Dia 8.0x12.5
635
APCD-635-02-05
5
50
Dia 6.2x11.5
635
APCD-635-04-10-TM
10
60
Dia 10.5x14.5
635
APCL-635-01-10
10
95
Dia 11.7x30
635
APCD-635-12-10
10
95
Dia 10.5x15.5
635
APCD-635-05-10
10
95
Dia 10.5x14.5
635
APCD-635-04-10
10
95
Dia 10.5x14.5
635
APFD-635-02-15-TA
15
110
Dia10.0x26.5
650
APCD-650-06-C1-TA
0.4
20
Dia 6.5x8.5
650
APCD-650-03-C2-TA
1
35
Dia 8.0x12.5
650
APCD-650-77-C2-TM
1
30
Dia 3.3x5.71
650
APCD-650-07-C2-TM
1
30
Dia 3.3x7
650
APCD-650-06-C2-TM
1
20
Dia6.5x8.5
650
APCD-650-01-C2-TM
1
30
Dia 4x8.5
650
APCD-650-S7-C2
1
35
Dia3.3x5.71
650
APCD-650-D1-C2-XX
1
40
Dia 4.0x9
650
APCL-650-01-C2
1
40
Dia 11.7x30
650
APCD-650-27-C2
1
35
Dia 20x55.1
650
APCD-650-12-C2
1
35
Dia 10.5x15.5
650
APCD-650-07-C2
1
35
Dia 3.3x7
650
APCD-650-06-C2
1
35
Dia 6.5x8.5
650
APCD-650-05-C2
1
35
Dia 10.5x14.5
650
APCD-650-04-C2
1
35
Dia 10.5x14.5
650
APCD-650-03-C2
1
35
Dia 8.0x12.5
650
APCD-650-02-C2
1
35
Dia 6.2x11.5
650
APCD-650-01-C2
1
35
Dia 4.0x8.5
650
APCD-650-61-C3-TA-01
3
30
60
650
APCD-650-07-C3-TM
3
35
Dia 3.3x7
650
APCD-650-D1-C3-XX
3
50
Dia 4.0x9
650
APCL-650-CW03
3
50
Dia 9.0x16.5
650
APCL-650-WP03
3
40
Dia 9.0x16.5
650
APCL-650-01-C3
3
50
Dia 11.7x30
650
APCD-650-27-C3
3
35
Dia 20x55.1
650
APCD-650-12-C3
3
35
Dia 10.5x15.5
650
APCD-650-07-C3
3
35
Dia 3.3x7
650
APCD-650-06-C3
3
35
Dia 6.5x8.5
650
APCD-650-05-C3
3
35
Dia 10.5x14.5
650
APCD-650-04-C3
3
35
Dia 10.5x14.5
650
APCD-650-03-C3
3
35
Dia 8.0x12.5
650
APCD-650-02-C3
3
35
Dia 6.2x11.5
650
APCD-650-01-C3
3
35
Dia 4.0x8.5
650
APCD-650-01-C3-TM
3.5
30
Dia 4x8.5
650
APCD-650-S7-05
5
35
Dia3.3x5.71
650
APCD-650-D1-05-XX
5
50
Dia 4.0x9
650
APCL-650-CW05
5
40
Dia 9.0x16.5
650
APCL-650-WP05
5
50
Dia 9.0x16.5
650
APCL-650-01-05
5
50
Dia 11.7x30
650
APCD-650-27-05
5
40
Dia 20x55.1
650
APCD-650-12-05
5
40
Dia 10.5x15.5
650
APCD-650-07-05
5
40
Dia 3.3x7
650
APCD-650-06-05
5
40
Dia 6.5x8.5
650
APCD-650-05-05
5
40
Dia 10.5x14.5
650
APCD-650-04-05
5
40
Dia 10.5x14.5
650
APCD-650-03-05
5
40
Dia 8.0x12.5
650
APCD-650-02-05
5
40
Dia 6.2x11.5
650
APCD-650-01-05
5
40
Dia 4.0x8.5
650
APCL-650-01-10
10
50
Dia 11.7x30
650
APCD-650-27-10
10
60
Dia 20x55.1
650
APCD-650-12-10
10
60
Dia 10.5x15.5
650
APCD-650-05-10
10
60
Dia 10.5x14.5
650
APCD-650-04-10
10
60
Dia 10.5x14.5
780
APCD-780-02-C1-TA
0.5
35
Dia 6.2x11.5
780
APCD-780-05-C3-TA
0.5
35
Dia 10.5x15
780
APCD-780-07-C1-TA
0.5
35
Dia 3.3x7
780
APCD-780-06-C1-TA
0.5
35
Dia 6.5x8.5
780
APCD-780-01-C1-TM
0.5
32
Dia 4x8.5
780
APCD-780-27-C2
1
35
Dia20x55.1
780
APCD-780-D1-C2-XX
1
40
Dia 4.0x8.5
780
APCL-780-01-C2
1
40
Dia 11.7x30
780
APCD-780-12-C2
1
35
Dia 10.5x15.5
780
APCD-780-07-C2
1
35
Dia 3.3x7
780
APCD-780-06-C2
1
35
Dia 6.5x8.5
780
APCD-780-05-C2
1
40
Dia 10.5x15.0
780
APCD-780-04-C2
1
50
Dia 10.5x15.0
780
APCD-780-02-C2
1
35
Dia 6.2x11.5
780
APCD-780-01-C2
1
35
Dia 4.0x8.5
780
APCD-780-12-C3-TA
2.8
40
Dia 10.5x15.5
780
APCD-780-01-C3-TA
2.8
40
Dia 4x8.5
780
APCD-780-D1-C3-XX
3
45
Dia 4.0x8.5
780
APCL-780-CW03
3
40
Dia 9.0x16.5
780
APCL-780-01-C3
3
50
Dia 11.7x30
780
APCD-780-27-C3
3
50
Dia 20x55.1
780
APCD-780-12-C3
3
35
Dia 10.5x15.5
780
APCD-780-07-C3
3
35
Dia 3.3x7
780
APCD-780-06-C3
3
35
Dia 6.5x8.5
780
APCD-780-05-C3
3
40
Dia 10.5x15.0
780
APCD-780-04-C3
3
50
Dia 10.5x15.0
780
APCD-780-02-C3
3
35
Dia 6.2x11.5
780
APCD-780-01-C3
3
35
Dia 4.0x8.5
780
APCD-780-01-05
5
45
Dia 4.0x8.5
830
AML-R3535-830XXX-01
150
260
3.5
830
AML-R040-830XXX-01
150
330
Dia 4x5
830
AML-R090-830XXX-02
160
260
Dia9.0x7.0
830
AML-R065-830XXX-03
160
260
Dia6.5x7.0
830
AML-R065-830XXX-02
160
260
Dia6.5x7.0
830
AML-R065-830XXX-01
160
350
Dia 6.5x7.0
830
AML-R090-830XXX-01
160
350
Dia 9.0x7.0
850
ADS-LDS8501D-01
0.7
100
59 ×33 ×21.5
850
APCD-850-D1-C2-XX
1
40
Dia 4.0x9
850
APCL-850-CW03-C2
1
40
Dia 9.0x16.5
850
APCL-850-WP03-C2
1
40
Dia 8.0x16.5
850
APCL-850-01-C2
1
40
Dia 11.7x30
850
APCD-850-27-C2
1
40
Dia 20x55.1
850
APCD-850-12-C2
1
40
Dia 10.5x15.5
850
APCD-850-07-C2
1
40
Dia 3.3x7
850
APCD-850-06-C2
1
40
Dia 6.5x8.5
850
APCD-850-05-C2
1
40
Dia 10.5x14.5
850
APCD-850-04-C2
1
40
Dia 10.5x14.5
850
APCD-850-03-C2
1
40
Dia 8.0x12.5
850
APCD-850-02-C2
1
40
Dia 6.2x11.5
850
APCD-850-01-C2
1
40
Dia 4.0x8.5
850
APCD-850-D1-C3-XX
3
50
Dia 4.0x9
850
APCL-850-CW03-C3
3
50
Dia 9.0x16.5
850
APCL-850-01-C3
3
50
Dia 11.7x30
850
APCD-850-27-C3
3
50
Dia 20x55.1
850
APCD-850-12-C3
3
50
Dia 10.5x15.5
850
APCD-850-07-C3
3
50
Dia 3.3x7
850
APCD-850-06-C3
3
50
Dia 6.5x8.5
850
APCD-850-05-C3
3
50
Dia 10.5x14.5
850
APCD-850-04-C3
3
50
Dia 10.5x14.5
850
APCD-850-03-C3
3
50
Dia 8.0x12.5
850
APCD-850-02-C3
3
50
Dia 6.2x11.5
850
APCD-850-01-C3
3
50
Dia 4.0x8.5
850
APCD-850-D1-05-XX
5
50
Dia 4.0x9
850
APCL-850-CW03-05
5
50
Dia 9.0x16.5
850
APCL-850-WP03-05
5
50
Dia 8.0x16.5
850
APCL-850-01-05
5
50
Dia 11.7x30
850
APCD-850-27-05
5
50
Dia 20x55.1
850
APCD-850-12-05
5
50
Dia 10.5x15.5
850
APCD-850-07-05
5
50
Dia 3.3x7
850
APCD-850-06-05
5
50
Dia 6.5x8.5
850
APCD-850-05-05
5
50
Dia 10.5x14.5
850
APCD-850-04-05
5
50
Dia 10.5x14.5
850
APCD-850-03-05
5
50
Dia 8.0x12.5
850
APCD-850-02-05
5
50
Dia 6.2x11.5
850
APCD-850-01-05
5
50
Dia 4.0x8.5
940
AML-R090-940XXX-02
160
300
Dia9.0x7.0
940
AML-R090-940XXX-01
160
300
Dia9.0x7.0
940
AML-R065-940XXX-02
160
300
Dia6.5x7.0
940
AML-R065-940XXX-01
160
300
Dia6.5x7.0
