作者：黄f 时间：2025-12-13
德国Gitterwerk公司为您提供高质量的透射式光栅库存，专为超短脉冲和高功率激光应用而优化。

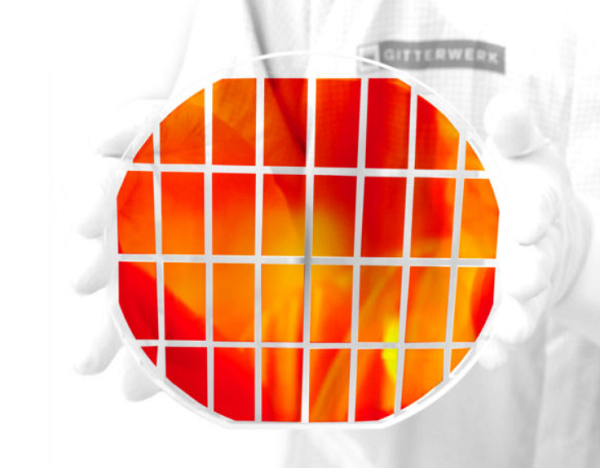

基于100%熔融石英的周期性透射式光栅库存，效率高达99.5%（含抗反射涂层），并具有出色的均匀性，可确保完美的光束质量。Gitterwerk透射光栅采用独特的基于掩模的全场曝光工艺制造，因此飞秒压缩光栅产品中无拼接瑕疵或周期变化。得益于超高纯度的熔融石英基底、高质量的介质涂层和独特的透射式光栅设计，该飞秒压缩光栅具有极高的损伤阈值和最大效率。
光栅库存表汇总了我司目前提供的德国Gitterwerk透射光栅部分标准品，透射式光栅库存包括450~2050nm波长飞秒压缩光栅，对应不同尺寸的透射光栅。Gitterwerk光栅汇总800nm，980nm、1064nm与1550nm的透射衍射光栅较为常用。800nm波长光栅适合高功率和超短脉冲激光器，980nm波长光栅为脉冲压缩光栅，常用于光束合成，1064nm光栅则是适用于高功率和超短脉冲激光器的完美光栅，1550nm光栅损耗小，应用于激光雷达等领域。透射衍射光栅/飞秒压缩光栅的产品库存充足，具备高均匀性、高损伤阈值、高质量和高机械稳定性等特点。
处了本文的Gitterwerk光栅汇总外，还提供1300nm波长的光栅库存表。可在网页中查阅1300nm相关Gitterwerk光栅汇总文章。
德国Gitterwerk透射光栅库存表：
|
波长(nm) |
产品编号 |
光栅周期(nm) |
偏振 |
宽度[mm] |
高度[mm] |
厚度[mm] |
测量效率 |
库存 |
|
450 |
1489_15x13_3_L |
400(2500.0 L/mm) |
TE(S) |
17 |
15 |
3 |
≥97% |
15 |
|
450 |
1748_38x38_6.35_N |
400(2500.0 L/mm) |
TM(P) |
40 |
40 |
6.35 |
≥97.5% |
1 |
|
517 |
1914_30x30_3_L |
625(1600.0 L/mm) |
TM(P) |
32 |
32 |
3 |
≥92.5% |
5 |
|
520 |
1730_15x13_3_L |
400(2500.0 L/mm) |
TE(S) |
17 |
15 |
3 |
≥96.5% |
2 |
|
520 |
1730_28x18_3_L |
400(2500.0 L/mm) |
TE(S) |
30 |
20 |
3 |
≥96.5% |
1 |
|
532 |
1666_108x22_6.35_L |
400(2500.0 L/mm) |
TE(S) |
110 |
24 |
6.35 |
≥96.5% |
3 |
|
600 |
1807_28x18_3_L |
575(1739.1 L/mm) |
TE,TM(U) |
30 |
20 |
3 |
≥95% |
8 |
|
600 |
1627_28x18_3_L |
1000(1000.0 L/mm) |
TE,TM(U) |
30 |
20 |
3 |
≥75% |
12 |
|
671 |
1868_30x13_3_L |
400(2500.0 L/mm) |
TE(S) |
32 |
15 |
3 |
≥90% |
8 |
|
780 |
2256_12x8_6.35_N |
575(1739.1 L/mm) |
TE(S) |
14 |
10 |
6.35 |
≥97.5% |
11 |
|
780 |
2256_12x8_6.35_H |
575(1739.1 L/mm) |
TE(S) |
14 |
10 |
6.35 |
≥98.5% |
2 |
|
780 |
2256_30x30_6.35_N |
575(1739.1 L/mm) |
TE(S) |
32 |
32 |
6.35 |
≥97.5% |
1 |
|
780 |
1528_18x12_3_N |
725(1379.3 L/mm) |
TE(S) |
20 |
14 |
3 |
≥97.5% |
1 |
|
800 |
1354_28x18_3_N |
543(1841.6 L/mm) |
TE(S) |
30 |
20 |
3 |
≥97.5% |
7 |
|
800 |
1385_10x8_6.35_L |
725(1379.3 L/mm) |
TE(S) |
12 |
10 |
6.35 |
≥97.2 % |
1 |
|
800 |
1385_10x8_6.35_N |
725(1379.3 L/mm) |
TE(S) |
12 |
10 |
6.35 |
≥97.5% |
4 |
|
800 |
1385_10x8_6.35_H |
725(1379.3 L/mm) |
TE(S) |
12 |
10 |
6.35 |
≥98.5% |
2 |
|
800 |
1385_10x8_6.35_X |
725(1379.3 L/mm) |
TE(S) |
12 |
10 |
6.35 |
≥99.0% |
1 |
|
800 |
1385_15x13_3_N |
725(1379.3 L/mm) |
TE(S) |
17 |
15 |
3 |
≥97.5% |
8 |
|
800 |
1385_18x12_3_N |
725(1379.3 L/mm) |
TE(S) |
20 |
14 |
3 |
≥97.5% |
1 |
|
800 |
1385_30x30_3_H |
725(1379.3 L/mm) |
TE(S) |
32 |
32 |
3 |
≥98.5% |
1 |
|
800 |
1603_37x35.3_3_L |
833(1200.5 L/mm) |
TE(S) |
39 |
37.3 |
3 |
≥95.6% |
1 |
|
800 |
1752_57x41_3_L |
1250(800.0 L/mm) |
TM(P) |
59 |
43 |
3 |
≥81.1% |
1 |
|
895 |
1463_27x10_6.35_N |
543(1841.6 L/mm) |
TE(S) |
29 |
12 |
6.35 |
≥97.5% |
1 |
|
895 |
1463_27x10_6.35_H |
543(1841.6 L/mm) |
TE(S) |
29 |
12 |
6.35 |
≥98.5% |
2 |
|
895 |
1463_28x23_6.35_N |
543(1841.6 L/mm) |
TE(S) |
30 |
25 |
6.35 |
≥97.5% |
1 |
|
920 |
1872_10x8_6.35_N |
543(1841.6 L/mm) |
TE(S) |
12 |
10 |
6.35 |
≥97.5% |
8 |
|
920 |
1872_12x8_6.35_N |
543(1841.6 L/mm) |
TE(S) |
14 |
10 |
6.35 |
≥97.5% |
3 |
|
920 |
1425_53x14_6.35_L |
575(1739.1 L/mm) |
TM(P) |
55 |
16 |
6.35 |
≥93% |
1 |
|
920 |
2079_38x14_6.35_H |
625(1600.1 L/mm) |
TE(S) |
40 |
16 |
6.35 |
≥98.5% |
1 |
|
920 |
1420_10x8_6.35_N |
725(1379.3 L/mm) |
TE(S) |
12 |
10 |
6.35 |
≥97.5% |
6 |
|
920 |
1420_18x12_3_N |
725(1379.3 L/mm) |
TE(S) |
20 |
14 |
3 |
≥97.5% |
20 |
|
975 |
1392_28.8x12_3_H |
543(1841.6 L/mm) |
TE(S) |
30.8 |
14 |
3 |
≥98.5% |
1 |
|
975 |
1392_28.8x12_3_X |
543(1841.6 L/mm) |
TE(S) |
30.8 |
14 |
3 |
≥99.0% |
2 |
|
975 |
1392_55x28_3_H |
543(1841.6 L/mm) |
TE(S) |
57 |
30 |
3 |
≥98.5% |
1 |
|
975 |
1358_27x10_6.35_N |
625(1600.1 L/mm) |
TE(S) |
29 |
12 |
6.35 |
≥97.5% |
1 |
|
975 |
1358_74x10_6.35_X |
625(1600.1 L/mm) |
TE(S) |
76 |
12 |
6.35 |
≥99.0% |
2 |
|
975 |
1362_40x15_6.35_N |
638(1567.4 L/mm) |
TM(P) |
42 |
17 |
6.35 |
≥97.5% |
5 |
|
975 |
1027_40x15_6.35_H |
638(1567.4 L/mm) |
TE(S) |
42 |
17 |
6.35 |
≥98.5% |
7 |
|
975 |
1362_40x15_6.35_H |
638(1567.4 L/mm) |
TM(P) |
42 |
17 |
6.35 |
≥98.5% |
3 |
|
980 |
1090_15x9.9_3_N |
543(1841.6 L/mm) |
TE(S) |
17 |
11.9 |
3 |
≥97.5% |
1 |
|
980 |
1090_15x9.9_3_H |
543(1841.6 L/mm) |
TE(S) |
17 |
11.9 |
3 |
≥98.5% |
5 |
|
1035 |
1071_75x13_6.35_N |
625(1600.1 L/mm) |
TE(S) |
77 |
15 |
6.35 |
≥97.5% |
2 |
|
1035 |
1071_75x13_6.35_H |
625(1600.1 L/mm) |
TE(S) |
77 |
15 |
6.35 |
≥98.5% |
3 |
|
1035 |
1071_75x13_6.35_X |
625(1600.1 L/mm) |
TE(S) |
77 |
15 |
6.35 |
≥99.0% |
1 |
|
1040 |
1231_14.3x11_6.35_L |
543(1841.6 L/mm) |
TE(S) |
16.3 |
13 |
6.35 |
≥97% |
2 |
|
1040 |
1231_14.3x11_6.35_H |
543(1841.6 L/mm) |
TE(S) |
16.3 |
13 |
6.35 |
≥98.5% |
1 |
|
1040 |
1231_14.3x11_6.35_X |
543(1841.6 L/mm) |
TE(S) |
16.3 |
13 |
6.35 |
≥99.0% |
1 |
|
1040 |
1231_18x11_6.35_H |
543(1841.6 L/mm) |
TE(S) |
20 |
13 |
6.35 |
≥98.5% |
12 |
|
1040 |
1231_18x11_6.35_X |
543(1841.6 L/mm) |
TE(S) |
20 |
13 |
6.35 |
≥99.0% |
12 |
|
1040 |
1873_28.8x12_3_L |
1000(1000.0 L/mm) |
TE,TM(U) |
30.8 |
14 |
3 |
≥95.5% |
12 |
|
1045 |
1758_35x24.9_3_N |
575(1739.1 L/mm) |
TE(S) |
37 |
26.9 |
3 |
≥97.5% |
1 |
|
1046 |
1350_63x31_6.35_H |
725(1379.3 L/mm) |
TE(S) |
65 |
33 |
6.35 |
≥98.5% |
2 |
|
1050 |
1987_39×28_6.35_N |
571(1751.3 L/mm) |
TE(S) |
41 |
30 |
6.35 |
≥97.5% |
1 |
|
1050 |
1587_28.8×12_3_H |
725(1379.3 L/mm) |
TE(S) |
30.8 |
14 |
3 |
≥98.5% |
13 |
|
1050 |
1587_28.8×12_3_X |
725(1379.3 L/mm) |
TE(S) |
30.8 |
14 |
3 |
≥99.0% |
8 |
|
1050 |
1587_43×13_3_H |
725(1379.3 L/mm) |
TE(S) |
45 |
15 |
3 |
≥98.5% |
3 |
|
1050 |
1587_43×13_3_X |
725(1379.3 L/mm) |
TE(S) |
45 |
15 |
3 |
≥99.0% |
4 |
|
1050 |
1587_39×28_3_X |
725(1379.3 L/mm) |
TE(S) |
41 |
30 |
3 |
≥99.0% |
1 |
|
1050 |
1587_37×35.3_3_H |
725(1379.3 L/mm) |
TE(S) |
39 |
37.3 |
3 |
≥98.5% |
1 |
|
1050 |
1587_37×35.3_3_X |
725(1379.3 L/mm) |
TE(S) |
39 |
37.3 |
3 |
≥99.0% |
2 |
|
1050 |
1587_48×48_3_H |
725(1379.3 L/mm) |
TE(S) |
50 |
50 |
3 |
≥98.5% |
1 |
|
1050 |
1587_48×48_3_X |
725(1379.3 L/mm) |
TE(S) |
50 |
50 |
3 |
≥99.0% |
1 |
|
1050 |
1812_28x18_3_L |
1000(1000.0 L/mm) |
TE(S) |
30 |
20 |
3 |
≥91.8% |
16 |
|
1064 |
1534_12×8_6.35_N |
575(1739.1 L/mm) |
TE(S) |
14 |
10 |
6.35 |
≥97.5% |
6 |
|
1064 |
1534_28×18_6.35_N |
575(1739.1 L/mm) |
TE(S) |
30 |
20 |
6.35 |
≥97.5% |
1 |
|
1064 |
1534_28×18_6.35_H |
575(1739.1 L/mm) |
TE(S) |
30 |
20 |
6.35 |
≥98.5% |
1 |
|
1064 |
1534_48×28_6.35_N |
575(1739.1 L/mm) |
TE(S) |
50 |
30 |
6.35 |
≥97.5% |
3 |
|
1064 |
1534_98×13_6.35_N |
575(1739.1 L/mm) |
TE(S) |
100 |
15 |
6.35 |
≥97.5% |
2 |
|
1064 |
1534_48×48_6.35_X |
575(1739.1 L/mm) |
TE(S) |
50 |
50 |
6.35 |
≥99.0% |
1 |
|
1064 |
1235_98×33_6.35_X |
625(1600.0 L/mm) |
TE(S) |
100 |
35 |
6.35 |
≥99.0% |
2 |
|
1075 |
1692_90×30_6.35_H |
833(1200.5 L/mm) |
TE(S) |
92 |
32 |
6.35 |
≥98.5% |
1 |
|
1120 |
1582_122x11_6.35_H |
625(1600.0 L/mm) |
TE(S) |
124 |
13 |
6.35 |
≥98.5% |
2 |
|
1190 |
1419_18x12_3_N |
725(1379.3 L/mm) |
TE(S) |
20 |
14 |
3 |
≥97.5% |
12 |
|
1190 |
1419_18x12_3_H |
725(1379.3 L/mm) |
TE(S) |
20 |
14 |
3 |
≥98.5% |
3 |
|
1420 |
2244_28x18_6.35_N |
1250(800.0 L/mm) |
TE(S) |
30 |
20 |
6.35 |
≥97.5% |
4 |
|
1420 |
2244_39x28_6.35_N |
1250(800.0 L/mm) |
TE(S) |
41 |
30 |
6.35 |
≥97.5% |
2 |
|
1420 |
2245_22x70_6.35_N |
1250(800.0 L/mm) |
TE(S) |
72 |
24 |
6.35 |
≥97.5% |
1 |
|
1430 |
1726_28x23_3_N |
833(1200.5 L/mm) |
TE(S) |
30 |
25 |
3 |
≥97.5% |
3 |
|
1550 |
1535_15x13_6.35_N |
833(1200.5 L/mm) |
TE(S) |
17 |
15 |
6.35 |
≥97% |
2 |
|
1550 |
1535_30x13_6.35_N |
833(1200.5 L/mm) |
TE(S) |
32 |
15 |
6.35 |
≥97.5% |
3 |
|
1550 |
1535_133x18_6.35_L |
833(1200.5 L/mm) |
TE(S) |
135 |
20 |
6.35 |
≥96.6% |
2 |
|
1550 |
1723_25x10.9_3_H |
1250(800.0 L/mm) |
TE(S) |
27 |
12.9 |
3 |
≥98.5% |
6 |
|
1550 |
1723_37x9.9_3_N |
1250(800.0 L/mm) |
TE(S) |
39 |
11.9 |
3 |
≥97.5% |
1 |
|
1550 |
1723_37x9.9_3_H |
1250(800.0 L/mm) |
TE(S) |
39 |
11.9 |
3 |
≥98.5% |
1 |
|
1550 |
1723_28x18_3_H |
1250(800.0 L/mm) |
TE(S) |
30 |
20 |
3 |
≥98.5% |
1 |
|
1550 |
1201_53x23_3_L |
1666(600.2 L/mm) |
TE,TM(U) |
55 |
25 |
3 |
≥93% |
2 |
|
1560 |
1466_26x8_3_N |
1000(1000.0 L/mm) |
TE(S) |
28 |
10 |
3 |
≥97.5% |
3 |
|
1560 |
1466_26x8_3_H |
1000(1000.0 L/mm) |
TE(S) |
28 |
10 |
3 |
≥98.5% |
1 |
|
1560 |
1723_25x10.9_3_N |
1000(1000.0 L/mm) |
TE(S) |
27 |
12.9 |
3 |
≥97.5% |
1 |
|
1560 |
1466_25x10.9_3_H |
1000(1000.0 L/mm) |
TE(S) |
27 |
12.9 |
3 |
≥98.5% |
1 |
|
1560 |
1466_28x18_3_N |
1000(1000.0 L/mm) |
TE(S) |
30 |
20 |
3 |
≥97.5% |
4 |
|
1560 |
1466_28x18_3_H |
1000(1000.0 L/mm) |
TE(S) |
30 |
20 |
3 |
≥98.5% |
5 |
|
1560 |
1466_28x18_3_X |
1000(1000.0 L/mm) |
TE(S) |
30 |
20 |
3 |
≥99.0% |
3 |
|
1560 |
1466_63x10_3_H |
1000(1000.0 L/mm) |
TE(S) |
65 |
12 |
3 |
≥98.5% |
1 |
|
1575 |
2407_15x9.9_3_H |
1250(800.0 L/mm) |
TE(S) |
17 |
11.9 |
3 |
≥98.5% |
1 |
|
1840 |
1365_26x8_3_N |
1250(800.0 L/mm) |
TE(S) |
28 |
10 |
3 |
≥97.5% |
4 |
|
1840 |
1365_28.8x12_3_N |
1250(800.0 L/mm) |
TE(S) |
30.8 |
14 |
3 |
≥97.5% |
4 |
|
1840 |
1365_98x18_3_N |
1250(800.0 L/mm) |
TE(S) |
100 |
20 |
3 |
≥97.5% |
1 |
|
1840 |
1365_98x18_3_H |
1250(800.0 L/mm) |
TE(S) |
100 |
20 |
3 |
≥98.5% |
2 |
|
1975 |
1921_28x18_3_L |
1666(600.2 L/mm) |
TE(S) |
30 |
20 |
3 |
≥90.5% |
10 |
|
1975 |
1921_39x23_3_L |
1666(600.2 L/mm) |
TE(S) |
41 |
25 |
3 |
≥97% |
3 |
|
1980 |
1364_28x18_6.35_N |
1250(800.0 L/mm) |
TE(S) |
30 |
20 |
6.35 |
≥97.5% |
1 |
|
2050 |
2126_28x18_3_N |
1100(909.1 L/mm) |
TE(S) |
30 |
20 |
3 |
≥97.5% |
2 |
|
2050 |
2126_28x23_3_N |
1100(909.1 L/mm) |
TE(S) |
30 |
25 |
3 |
≥97.5% |
1 |
|
2050 |
2126_30x30_3_N |
1100(909.1 L/mm) |
TE(S) |
32 |
32 |
3 |
≥97.5% |
1 |
|
2050 |
2126_63x18_3_N |
1100(909.1 L/mm) |
TE(S) |
65 |
20 |
3 |
≥97.5% |
1 |
|
2050 |
2126_131x30_3_N |
1100(909.1 L/mm) |
TE(S) |
133 |
32 |
3 |
≥97.5% |
1 |
|
2050 |
1997_14x22.5_3_N |
1250(800.0 L/mm) |
TE(S) |
16 |
24.5 |
3 |
≥97.5% |
1 |
|
2050 |
2059_28x18_6.35_N |
1250(800.0 L/mm) |
TE(S) |
30 |
20 |
6.35 |
≥97.5% |
1 |
