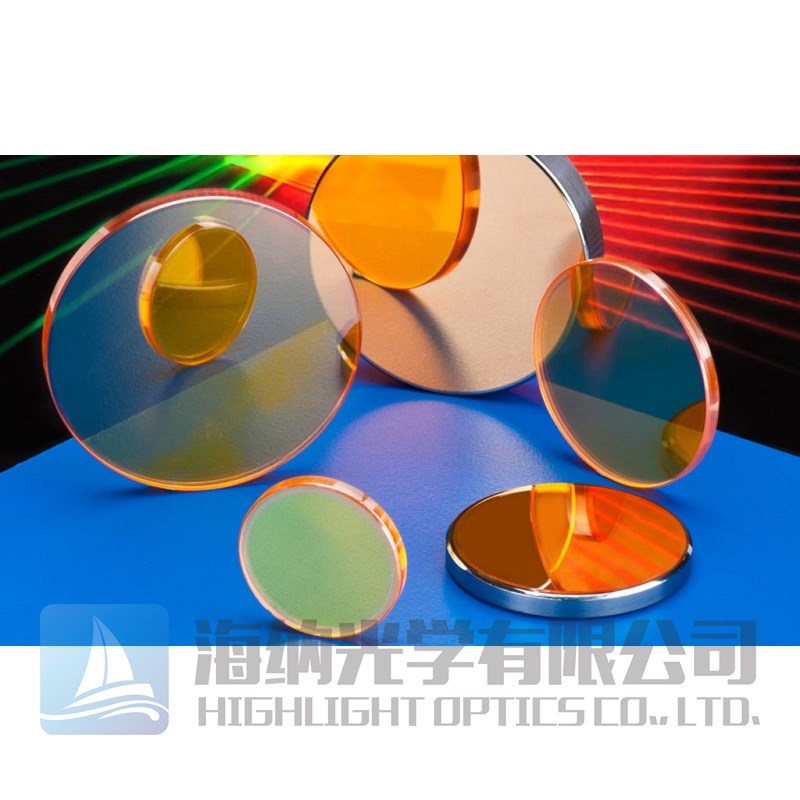

Laser Research Optics是美国一家专注于生产高功率激光镜片的高科技公司，其提供全系列CO2激光镜片，包括LRO高功率CO2激光镜片，二氧化碳全反射镜，零相位和相位延迟镜，窗片，ZnSe分束镜，合束镜，钼金属镜等。LRO公司的镜片针对10.6μm波长进行优化，配合各类工业激光器，能在高要求的复合材料上切出干净的高精度切割边缘。其中LRO的钼镜片（无镀膜）， 45°自动光学检测下10.6 µm波长处，可获得>98.1%的平均反射率以及<1.9%的吸收率和散射率
所属品牌： 美国Laser Research Optics
应用类型：
产品型号：LMA-0715-Z-ET1.8
负责人：韦工
联系电话：18927460030
电子邮箱：bqwei@welloptics.cn
Laser Research Optics（简称LRO）的总部位于美国的普罗维登斯，主要销售用于高功率工业激光器的一些列CO2激光透镜和反射镜，其适合用于切割复杂形状且对切割边缘精度要求很高的复合材料。其产品包括聚焦透镜（平凸透镜、平凹透镜、半月板透镜、低吸收透镜），全反射镜（平面平行镜、转向镜、凹面镜），部分反射镜，零相位和相位延迟镜，窗镜，光束分束镜，合束镜，钼金属镜，铜金属镜片。
LRO高功率二氧化碳激光镜片的镜头和镜子符合OEM和ISO-10111规格，并针对10.6μm波长进行了优化，配合主流激光器使用，能在磨料复合材料和酚醛树脂材质上产生干净的切口，实现冲压或其他制造技术难以达到的切割效果。
LaserResearch公司提供了多种标准品的光学镜片，主要分为以下六大类。
一，高性能聚焦镜片
LX系列平凸透镜型号：
LaserResearch提供0.5~2.5英寸的CO2激光透镜，具有25.4mm~ 4.5m的焦距，可提供双波段抗反射涂层，有助于系统对准。反射镜的厚度为0.07英寸至6 mm，一般用ZnSe制成。
|
型号 |
材质 |
直径(英寸） |
焦距（英寸） |
Edge 厚度 |
Mounted |
QOH |
|
LMA-0715-Z-ET1.8 |
ZnSe |
0.750" |
1.50" |
0.070" |
yes |
3 |
|
LMA-0720-Z-ET1.8 |
ZnSe |
0.750" |
2.00" |
0.070" |
yes |
9 |
|
LMA-0725-Z-ET1.8 |
ZnSe |
0.750" |
2.50" |
0.070" |
yes |
4 |
|
LMA-0740-Z-ET1.8 |
ZnSe |
0.750" |
4.00" |
0.070" |
yes |
0 |
|
LX-0615-Z-ET1.5 |
ZnSe |
0.600" |
1.500" |
0.060" |
no |
26 |
|
LX-0620-Z-ET1.5 |
ZnSe |
0.600" |
2.000" |
0.060" |
no |
12 |
|
LX-0625-Z-ET1.5 |
ZnSe |
0.600" |
2.500" |
0.060" |
no |
54 |
|
LX-0640-Z-ET1.5 |
ZnSe |
0.600" |
4.000" |
0.060" |
no |
7 |
|
LX-0650-Z-ET1.5 |
ZnSe |
0.600" |
5.000" |
0.060" |
no |
0 |
|
LX-0710-Z-ET1.8 |
ZnSe |
0.750" |
1.000" |
0.070" |
no |
29 |
|
LX-0715-Z-ET1.8 |
ZnSe |
0.750" |
1.500" |
0.070" |
no |
25 |
|
LX-0715-Z-ET2.5 |
ZnSe |
0.750" |
1.500" |
0.100" |
no |
54 |
|
LX-0720-Z-ET1.8 |
ZnSe |
0.750" |
2.000" |
0.070" |
no |
26 |
|
LX-0725-Z-ET1.8 |
ZnSe |
0.750" |
2.500" |
0.070" |
no |
36 |
|
LX-0730-Z-ET1.8 |
ZnSe |
0.750" |
3.000" |
0.070" |
no |
2 |
|
LX-0735-Z-ET1.8 |
ZnSe |
0.750" |
3.500" |
0.070" |
no |
1 |
|
LX-0740-Z-ET1.8 |
ZnSe |
0.750" |
4.000" |
0.070" |
no |
27 |
|
LX-0750-Z-ET1.8 |
ZnSe |
0.750" |
5.000" |
0.070" |
no |
23 |
|
LX-0775-Z-ET1.8 |
ZnSe |
0.750" |
7.500" |
0.070" |
no |
0 |
|
LX-1015-Z-ET3.0 |
ZnSe |
1.000" |
1.500" |
0.120" |
no |
17 |
|
LX-1020-Z-ET3.0 |
ZnSe |
1.000" |
2.000" |
0.120" |
no |
6 |
|
LX-1025-Z-ET3.0 |
ZnSe |
1.000" |
2.500" |
0.120" |
no |
17 |
|
LX-1030-Z-ET3.0 |
ZnSe |
1.000" |
3.000" |
0.120" |
no |
6 |
|
LX-1035-Z-ET3.0 |
ZnSe |
1.000" |
3.500" |
0.120" |
no |
16 |
|
LX-1040-Z-ET3.0 |
ZnSe |
1.000" |
4.000" |
0.120" |
no |
19 |
|
LX-1050-Z-ET2.0 |
ZnSe |
1.000" |
5.000" |
0.080" |
no |
15 |
|
LX-1050-Z-ET3.0 |
ZnSe |
1.000" |
5.000" |
0.120" |
no |
13 |
|
LX-1075-Z-ET3.0 |
ZnSe |
1.000" |
7.500" |
0.120" |
no |
16 |
|
LX-10A0-Z-ET3.0 |
ZnSe |
1.000" |
10.000" |
0.120" |
no |
0 |
|
LX-1125-Z-ET2.0 |
ZnSe |
1.100" |
2.500" |
0.080" |
no |
6 |
|
LX-1125-Z-ET3.0 |
ZnSe |
1.100" |
2.500" |
0.120" |
no |
1 |
|
LX-1125-Z-ET4.0 |
ZnSe |
1.100" |
2.500" |
0.160" |
no |
0 |
|
LX-1135-Z-ET2.0 |
ZnSe |
1.100" |
3.500" |
0.080" |
no |
0 |
|
LX-1135-Z-ET3.0 |
ZnSe |
1.100" |
3.500" |
0.120" |
no |
4 |
|
LX-1135-Z-ET4.0 |
ZnSe |
1.100" |
3.500" |
0.160" |
no |
19 |
|
LX-1137-Z-ET3.0 |
ZnSe |
1.100" |
3.750" |
0.120" |
no |
18 |
|
LX-1150-Z-ET2.0 |
ZnSe |
1.100" |
5.000" |
0.080" |
no |
11 |
|
LX-1150-Z-ET2.5 |
ZnSe |
1.100" |
5.000" |
0.100" |
no |
1 |
|
LX-1150-Z-ET3.0 |
ZnSe |
1.100" |
5.000" |
0.120" |
no |
9 |
|
LX-1150-Z-ET4.0 |
ZnSe |
1.100" |
5.000" |
0.160" |
no |
15 |
|
LX-1150-Z-ET6.0 |
ZnSe |
1.100" |
5.000" |
0.236" |
no |
19 |
|
LX-1175-Z-ET3.0 |
ZnSe |
1.100" |
7.500" |
0.120" |
no |
9 |
|
LX-11A0-Z-ET3.0 |
ZnSe |
1.100" |
10.000" |
0.120" |
no |
0 |
|
LX-1525-Z-ET3.0 |
ZnSe |
1.500" |
2.500" |
0.120" |
no |
22 |
|
LX-1535-Z-ET3.0 |
ZnSe |
1.500" |
3.500" |
0.120" |
no |
19 |
|
LX-1537-Z-ET3.0 |
ZnSe |
1.500" |
3.750" |
0.120" |
no |
27 |
|
LX-1550-Z-ET2.0 |
ZnSe |
1.500" |
5.000" |
0.080" |
no |
2 |
|
LX-1550-Z-ET3.0 |
ZnSe |
1.500" |
5.000" |
0.120" |
no |
14 |
|
LX-1550-Z-ET4.0 |
ZnSe |
1.500" |
5.000" |
0.160" |
no |
11 |
|
LX-1550-Z-ET5.0 |
ZnSe |
1.500" |
5.000" |
0.200" |
no |
27 |
|
LX-1550-Z-ET6.0 |
ZnSe |
1.500" |
5.000" |
0.236" |
no |
13 |
|
LX-1550-Z-ET7.6 |
ZnSe |
1.500" |
5.000" |
0.300" |
no |
19 |
|
LX-1550-Z-ET8.0 |
ZnSe |
1.500" |
5.000" |
0.315" |
no |
31 |
|
LX-1551-Z-ET7.0 |
ZnSe |
1.500" |
5.128" |
0.275" |
no |
48 |
|
LX-1560-Z-ET3.0 |
ZnSe |
1.500" |
6.000" |
0.120" |
no |
0 |
|
LX-1574-Z-ET3.0 |
ZnSe |
1.500" |
7.450" |
0.120" |
no |
1 |
|
LX-1574-Z-ET4.0 |
ZnSe |
1.500" |
7.450" |
0.160" |
no |
26 |
|
LX-1574-Z-ET7.6 |
ZnSe |
1.500" |
7.450" |
0.300" |
no |
28 |
|
LX-1575-Z-ET3.0 |
ZnSe |
1.500" |
7.500" |
0.120" |
no |
14 |
|
LX-1575-Z-ET4.0 |
ZnSe |
1.500" |
7.500" |
0.160" |
no |
30 |
|
LX-1575-Z-ET6.0 |
ZnSe |
1.500" |
7.500" |
0.236" |
no |
21 |
|
LX-1575-Z-ET8.0 |
ZnSe |
1.500" |
7.500" |
0.315" |
no |
27 |
|
LX-1576-Z-ET7.6 |
ZnSe |
1.500" |
7.630" |
0.300" |
no |
7 |
|
LX-15A0-Z-ET2.0 |
ZnSe |
1.500" |
10.000" |
0.080" |
no |
13 |
|
LX-15A0-Z-ET4.0 |
ZnSe |
1.500" |
10.000" |
0.160" |
no |
0 |
|
LX-15A0-Z-ET6.0 |
ZnSe |
1.500" |
10.000" |
0.236" |
no |
7 |
|
LX-15A0-Z-ET7.6 |
ZnSe |
1.500" |
10.000" |
0.300" |
no |
2 |
|
LX-2050-Z-ET8.0 |
ZnSe |
2.000" |
5.000" |
0.315" |
no |
10 |
|
LX-2050-Z-ET9.65 |
ZnSe |
2.000" |
5.000" |
0.380" |
no |
11 |
|
LX-2051-Z-ET9.65 |
ZnSe |
2.000" |
5.188" |
0.380" |
no |
4 |
|
LX-2074-Z-ET7.87 |
ZnSe |
2.000" |
7.450" |
0.310" |
no |
44 |
|
LX-2074-Z-ET9.65 |
ZnSe |
2.000" |
7.450" |
0.380" |
no |
1 |
|
LX-2075-Z-ET8.0 |
ZnSe |
2.000" |
7.500" |
0.315" |
no |
10 |
|
LX-2076-Z-ET9.65 |
ZnSe |
2.000" |
7.673" |
0.380" |
no |
1 |
|
LX-2087-Z-ET8.0 |
ZnSe |
2.000" |
8.750" |
0.315" |
no |
7 |
|
LX-20A0-Z-ET8.0 |
ZnSe |
2.000" |
10.000" |
0.315" |
no |
9 |
|
LX-20A3-Z-ET8.0 |
ZnSe |
2.000" |
12.500" |
0.315" |
no |
2 |
|
LX-2588-Z-ET7.87 |
ZnSe |
2.500" |
8.750" |
0.310" |
no |
29 |
|
LX-25A0-Z-ET9.65 |
ZnSe |
2.500" |
10.000" |
0.380" |
no |
7 |
|
LXM-28-Z-100-ET2.3 |
ZnSe |
28.00mm |
100.00mm |
2.30mm |
no |
6 |
|
LXM-38.1-Z-15M-ET4.0 |
ZnSe |
38.10mm |
15meters |
4.00mm |
no |
9 |
|
LXM-50.8-Z-4M-ET6.0 |
ZnSe |
50.80mm |
4.0 meters |
6.00mm |
no |
9 |
LM系列半月板镜片型号：
LM-1015-Z-ET2.0，LM-1116-Z-ET2.0，LM-1125-A-ET1.88，LM-1125-Z-ET3.0，LM-1135-Z-ET3.0
LM-1137-Z-ET4.0，LM-1150-Z-ET3.0，LM-1150-Z-ET6.0，LM-1175-Z-ET2.8，LM-1525-Z-ET3.0
LM-1538-Z-ET7.37，LM-1550-Z-ET6.0，LM-1550-Z-ET7.37，LM-1550-Z-ET9.0，LM-1575-Z-ET6.0
LM-1575-Z-ET7.37，LM-1575-Z-ET9.0，LM-1590-Z-ET7.37，LM-2050-Z-ET9.0，LM-2075-Z-ET9.0
LC系列平凸透镜型号：
LC-0610-Z-ET4.6，LC-0620-Z-ET2.0，LC-0710-Z-ET5.0，LC-0715-Z-ET4.0，LC-0720-Z-ET2.5
LC-0725-Z-ET3.0，LC-0750-Z-ET2.5，LC-1020-Z-ET4.0，LC-1110-Z-ET6.0，LC-1115-Z-ET5.0
LC-1125-Z-ET3.0
Cool-Cut™ 低吸收透镜型号：
LM-1550-Z-ET9.0-ULAAR，LM-1575-Z-ET6.0-ULAAR，LM-1575-Z-ET9.0-ULAAR，LX-1550-Z-ET8.0-ULAAR
LX-1551-Z-ET7.0-ULAAR，LX-1575-Z-ET8.0-ULAAR，LX-1576-Z-ET7.6-ULAAR，LX-2050-Z-ET7.87-ULAAR
LX-2050-Z-ET9.65-ULAAR，LX-2075-Z-ET7.87-ULAAR，LX-2075-Z-ET8.00-ULAAR
二，全反射镜
TR系列平面平行镜
这些硅全反射镜采用硅材质，表面有银和保护性电介质组成的薄膜涂层，针对CO2（10.6μm）波长进行设计和优化。它们在整个可见光，中红外和远红外波段中都表现出非常好的光谱性能，并且可以在45°AOI或垂直入射下使用，且几乎不影响反射率。
|
型号 |
材质 |
直径 |
厚度 |
Coat |
QOH |
|
TR-0512-S-PS |
Silicon |
0.500" |
0.120" |
ProtectedSilver |
0 |
|
TR-0712-S-PS |
Silicon |
0.750" |
0.120" |
ProtectedSilver |
0 |
|
TR-1012-S-PS |
Silicon |
1.000" |
0.120" |
ProtectedSilver |
13 |
|
TR-1516-S-PS |
Si |
1.500" |
0.160" |
ProtectedSilver |
0 |
|
TR-2020-S-PS |
Silicon |
2.000" |
0.200" |
ProtectedSilver |
0 |
|
TR-2037-S-PS |
Silicon |
2.000" |
0.375" |
ProtectedSilver |
0 |
|
TR-3025-S-PS |
Silicon |
3.000" |
0.250" |
ProtectedSilver |
1 |
TRCC系列凹面镜型号：
TRCC-0508-S-02-HES，TRCC-0508-S-05-HES，TRCC-0508-S-10-HES，TRCC-0512-S-02-HES
TRCC-0512-S-05-HES，TRCC-0512-S-10-HES，TRCC-0712-S-05-HES，TRCC-0712-S-10-HES
TRCC-1012-S-05-HES，TRCC-1012-S-10-HES，TRCC-1012-S-10-PS，TRCC-1816-S-10-PS
TM系列转向镜型号：
LMMA-0712-S-1，TM-0504-S-DBMR，TM-0512-S-DBMR，TM-0712-S-DBMR，TM-0712-S-ESDB，TM-0912-S-DBMR，TM-1012-S-DBMR，TM-1112-S-DBMR，TM-1516-S-DBMR，TM-1532-S-EC
TM-1538-S-EC，TM-1738-S-EG，TMM-2503-S-DBMR，TMPC-1516-S-RS，TMT-100716-S-DBMR
三，部分反射镜
OC系列Output Couplers
|
型号 |
材质 |
直径 |
厚度 |
镀膜层 |
QOH |
|
OC-1012-Z-50 |
ZnSe |
1.000" |
0.120" |
50%R-A/R |
0 |
|
OC-1012-Z-60 |
ZnSe |
1.000" |
0.120" |
60%R-A/R |
3 |
|
OC-1012-Z-65 |
ZnSe |
1.000" |
0.120" |
65%R-A/R |
0 |
|
OC-1012-Z-70 |
ZnSe |
1.000" |
0.120" |
70%R-A/R |
0 |
|
OC-1012-Z-75 |
ZnSe |
1.000" |
0.120" |
75%R-A/R |
0 |
|
OC-1012-Z-80 |
ZnSe |
1.000" |
0.120" |
80%R-A/R |
0 |
|
OC-1012-Z-85 |
ZnSe |
1.000" |
0.120" |
85%R-A/R |
0 |
|
OC-1012-Z-90 |
ZnSe |
1.000" |
0.120" |
90%R-A/R |
0 |
|
OC-1012-Z-95 |
ZnSe |
1.000" |
0.120" |
95%R-A/R |
0 |
|
OC-1112-A-65 |
GaAs |
1.100" |
0.120" |
65%R-A/R |
22 |
|
OC-1112-A-85 |
GaAs |
1.100" |
0.120" |
85% R-A/R |
0 |
|
OC-1124-Z-45 |
ZnSe |
1.100" |
0.236" |
45%R-A/R |
20 |
|
OC-1816-G-85 |
Ge |
1.750" |
0.160" |
85%R-A/R |
12 |
|
OCCC-1524-Z-20-30 |
ZnSe |
1.500" |
0.236" |
20MCC-30%R : PLANO-A/R |
2 |
|
OCCCCX-1024-Z-30-30-65 |
ZnSe |
1.000" |
0.236" |
30MCC-65%R : 30MCX-A/R |
95 |
|
OCCCCX-1524-Z-10:10-17 |
ZnSe |
1.500" |
0.236" |
10MCC-17%R : 10MCX-A/R |
2 |
|
OCCCCX-1524-Z-10:10-30 |
ZnSe |
1.500" |
0.236" |
10MCC-30%R : 10MCX-A/R |
0 |
|
OCCCCX-1524-Z-10:15-17 |
ZnSe |
1.500" |
0.236" |
10MCC-17%R : 15MCX-A/R |
4 |
ER 系列End Mirrors
ERCC-1012-Z-10-99.5，ERCC-1024-G-15-99.5，ERCC-1024-G-20-99.5，ERCC-1113-G-20-99
ERCC-1113-Z-10-99，ERCC-1122-G-10-99.5，ERCC-1122-G-20-99.5，ERCC-1124-G-10-99.5
ERCC-1124-G-20-99.5，ERCC-1514-G-10-99.5，ERCC-1514-G-15-99.5，ERCC-1524-G-20-99.5
ERCC-1524-Z-20-99，ERCC-1531-G-20-99.5，ERCC-1531-G-30-99.5，ERCC-1531-G-35-99.5
ERCC-1531-G-51-99.5
四，零相位 & 相位延迟镜
ZPR系列 Zero Phase Retardation Reflectors
这些反射器利用高增透的零相位薄膜涂层，基材使用硅或铜。适合于低损耗且对偏振不敏感的CO2激光反射镜，该反射镜设计用于保持光束传输系统的圆偏振。
|
型号 |
材质 |
直径 |
厚度 |
镀膜层 |
厂家库存 |
|
ZPR-0704-S-0 |
Si |
0.750" |
0.040" |
ZeroPhaseShift |
17 |
|
ZPR-0712-S-0 |
Si |
0.750" |
0.120" |
ZeroPhaseShift |
28 |
|
ZPR-1012-S-0 |
Si |
1.000" |
0.120" |
ZeroPhaseShift |
181 |
|
ZPR-1125-C-PLG |
Cu |
1.100" |
0.250" |
PlasmaGold |
2 |
|
ZPR-1516-S-0 |
Si |
1.500" |
0.160" |
ZeroPhaseShift |
18 |
|
ZPR-1816-S-0 |
Si |
1.750" |
0.160" |
ZeroPhaseShift |
8 |
|
ZPR-2020-S-0 |
Si |
2.000" |
0.200" |
ZeroPhaseShift |
43 |
|
ZPR-2038-C-PLG |
Cu |
2.000" |
0.375" |
PlasmaGold |
1 |
|
ZPR-2038-S-0 |
Si |
2.000" |
0.375" |
ZeroPhaseShift |
15 |
|
ZPR-2339-C-PLG |
Cu |
2.250" |
0.394" |
ZeroPhaseShift |
0 |
|
ZPR-3025-C-PLG |
Cu |
3.000" |
0.250" |
ZeroPhaseShift |
0 |
|
ZPR-3025-S-0 |
Si |
3.000" |
0.250" |
ZeroPhaseShift |
35 |
|
ZPR-3038-S-0 |
Si |
3.000" |
0.375" |
ZeroPhaseShift |
0 |
|
ZPR-3050-C-PLG |
Cu |
3.000" |
0.500" |
ZeroPhaseShift |
0 |
|
ZPR-3050-S-0 |
Si |
3.000" |
0.500" |
ZeroPhaseShift |
0 |
|
ZPR-3059-C-PLG |
Cu |
3.000" |
0.590" |
ZeroPhaseShift |
0 |
|
ZPR-WC-20B1-C-PLG |
Cu |
2.000" |
2.125" |
PlasmaGold |
0 |
|
ZPRM-4007-C-PLG |
Cu |
40.00mm |
7.50mm |
ZeroPhaseShift |
1 |
|
ZPRM-5005-C-PLG |
Cu |
50.0mm |
5.00mm |
ZeroPhaseShift |
0 |
|
ZPRM-5005-S-0 |
Si |
50.00mm |
5.00mm |
ZeroPhaseShift |
0 |
|
ZPRM-5009-C-PLG |
Cu |
50.00mm |
9.50mm |
ZeroPhaseShift |
0 |
|
ZPRM-5010-C-PLG |
Cu |
50.00mm |
10.00mm |
ZeroPhaseShift |
2 |
|
ZPRM-5010-S-0 |
Si |
50.00mm |
10.00mm |
ZeroPhaseShift |
0 |
|
ZPRM-5025-C-WC-PLG |
Cu |
50.00mm |
25.00mm |
ZeroPhaseShift |
0 |
|
ZPRM-5032-C-PLG |
Cu |
50.00mm |
31.75mm |
ZeroPhaseShift |
0 |
|
ZPRM-6006-C-PLG |
Cu |
60.00mm |
6.00mm |
ZeroPhaseShift |
5 |
|
ZPRM-6009-C-PLG |
Cu |
60.00mm |
9.00mm |
ZeroPhaseShift |
0 |
|
ZPRM-6010-C-PLG |
Cu |
60.00mm |
10.00mm |
ZeroPhaseShift |
0 |
|
ZPRM-7512-C-PLG |
Cu |
75.00mm |
12.70mm |
ZeroPhaseShift |
0 |
|
ZPRM-7515-C-PLG |
Cu |
75.00mm |
15.00mm |
ZeroPhaseShift |
17 |
PRR 系列Partial Retardation Reflectors
PRR-0712-S-90，PRR-1012-S-90，PRR-1516-S-90，PRR-1525-C-90，PRR-1716-S-90，PRR-2020-C-90，PRR-2020-S-90，PRR-2038-C-90，PRR-2038-S-90，PRR-2339-C-90，PRR-3025-C-90，PRR-3025-S-90
PRR-3038-S-90，PRR-3050-C-90，PRR-3050-S-90，PRR-3059-C-90，PRRM-5010-C-90，PRRM-5010-S-90
PRRM-6010-C-90，PRRM-7513-C-90，PRRM-7515-C-90
五，窗镜, 光束分束器 &合束镜
W系列窗镜型号：
W系列窗镜使用ZnSe材质，并且可选镀膜或不镀膜，增透膜提供> 98.5％的透射率，每个表面的反射率<0.25％，10.6微米。吸收值不超过0.25％。 可根据要求提供其他直径，厚度和波长。
|
型号 |
材质 |
直径 |
厚度 |
镀膜层 |
QOH |
|
W-0508-Z-DBAR |
ZnSe |
0.500" |
0.080" |
AR/AR |
12 |
|
W-0508-Z-UC |
ZnSe |
0.500" |
0.080" |
Uncoated |
15 |
|
W-0512-Z-DBAR |
ZnSe |
0.500" |
0.120" |
AR/AR |
3 |
|
W-0512-Z-UC |
ZnSe |
0.500" |
0.120" |
Uncoated |
|
|
W-0708-Z-DBAR |
ZnSe |
0.750" |
0.080" |
AR/AR |
0 |
|
W-0708-Z-UC |
ZnSe |
0.750" |
0.080" |
Uncoated |
0 |
|
W-0712-Z-DBAR |
ZnSe |
0.750" |
0.120" |
AR/AR |
14 |
|
W-0712-Z-UC |
ZnSe |
0.750" |
0.120" |
Uncoated |
0 |
|
W-1008-Z-AR |
ZnSe |
1.000" |
0.080" |
AR/AR |
10 |
|
W-1008-Z-UC |
ZnSe |
1.000" |
0.080" |
Uncoated |
11 |
|
W-1012-Z-AR |
ZnSe |
1.000" |
0.120" |
AR/AR |
16 |
|
W-1012-Z-UC |
ZnSe |
1.000" |
0.120" |
Uncoated |
38 |
|
W-1112-Z-AR |
ZnSe |
1.100" |
0.120" |
AR/AR |
7 |
|
W-1112-Z-UC |
ZnSe |
1.100" |
0.120" |
Uncoated |
12 |
|
W-1512-Z-AR |
ZnSe |
1.500" |
0.120" |
AR/AR |
9 |
|
W-1512-Z-UC |
ZnSe |
1.500" |
0.120" |
Uncoated |
20 |
|
W-1520-KCL-UC |
KCl |
1.500" |
0.200" |
Uncoated |
0 |
|
W-1525-Z-AR |
ZnSe |
1.500" |
0.250" |
AR/AR |
0 |
|
W-1525-Z-UC |
ZnSe |
1.500" |
0.250" |
Uncoated |
10 |
|
W-2012-Z-AR |
ZnSe |
2.000" |
0.120" |
AR/AR |
5 |
|
W-2012-Z-UC |
ZnSe |
2.000" |
0.120" |
Uncoated |
5 |
|
W-2020-Z-AR |
ZnSe |
2.000" |
0.200" |
AR/AR |
2 |
|
W-2020-Z-UC |
ZnSe |
2.000" |
0.200" |
Uncoated |
0 |
|
WM-2503-Z-AR |
ZnSe |
25.00mm |
3.00mm |
AR/AR |
10 |
|
WM-2503-Z-UC |
ZnSe |
25.00mm |
3.00mm |
Uncoated |
13 |
|
WM-3803-Z-AR |
ZnSe |
38.00mm |
3.00mm |
AR/AR |
3 |
|
WM-3803-Z-UC |
ZnSe |
38.00mm |
3.00mm |
Uncoated |
8 |
|
WM-5003-Z-AR |
ZnSe |
50.00mm |
3.00mm |
AR/AR |
0 |
|
WM-5003-Z-UC |
ZnSe |
50.00mm |
3.00mm |
Uncoated |
0 |
|
WM-5005-Z-AR |
ZnSe |
50.00mm |
5.00mm |
AR/AR |
1 |
|
WM-5005-Z-UC |
ZnSe |
50.00mm |
5.00mm |
Uncoated |
5 |
BS系列光束分束器型号：
BS-1012-Z-08-P，BS-1012-Z-50-P，BS-1012-Z-50-PIB，BS-1012-Z-50-S，BS-1012-Z-50-U
BS-1512-Z-50-P，BS-1512-Z-50-PIB，BS-1512-Z-50-S，BS-1512-Z-50-U，BS-2016-Z-50-S
BS-2020-Z-50-P，BS-2020-Z-50-PIB，BS-2020-Z-50-S，BS-2020-Z-50-U
BC系列光束合成器型号：
BC-0712-Z-AR-U，BC-1008-Z-AR-U，BC-1012-Z-AR-U，BC-1512-Z-AR-U，BCM-2503-Z-AR-U
六，金属材质透镜
MM系列 Molybdenum Mirrors
这些无涂层的钼镜片由纯真空ARC铸造低碳钼制成，非常耐用，适用于高功率的镜片直径从14mm到2英寸, 镜片厚度从1.25mm 至10 mm。这些镜子的反射率> 98.1％Avg。 在AOI 45°时为10.6μm。 吸收和散射损失<1.9％。
|
型号 |
材质 |
直径 |
厚度 |
镀膜层 |
QOH |
|
MM-1012-M-UC |
Mo |
1.000" |
0.120" |
Uncoated |
10 |
|
MM-1516-M-UC |
Mo |
1.500" |
0.160" |
Uncoated |
0 |
|
MM-2020-M-UC |
Mo |
2.000" |
0.200" |
Uncoated |
8 |
|
MM-2038-M-UC |
Mo |
2.000" |
0.375" |
Uncoated |
0 |
|
MMM-1401-M-UC |
Mo |
14.00mm |
1.25mm |
Uncoated |
13 |
|
MMM-1901-M-UC |
Mo |
19.00mm |
1.50mm |
Uncoated |
1 |
|
MMM-5006-M-UC |
Mo |
50.00mm |
6.00mm |
Uncoated |
3 |
|
MMM-5010-M-UC |
Mo |
50.00mm |
10.00mm |
Uncoated |
1 |
CM系列 Copper Mirrors
CMCCM-5032-3.00M-UC，CMCCM-5095-C-2.44M-PLG，CMCXM-5009-1.737MCX-C-GP
短波红外LED芯片
可变相位延迟器
